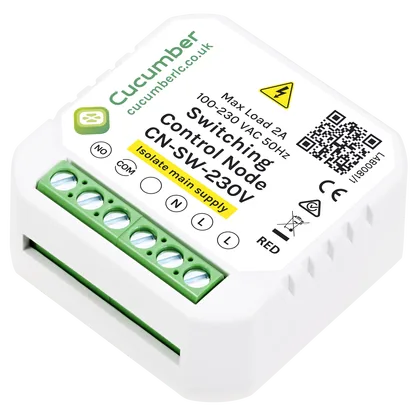

Switching Control Node - Mains Powered
The Cucumber Control Node seamlessly integrates into any luminaire. The luminaire can then wirelessly connect to other devices in the Cucumber Controls portfolio. Networking devices is quick and easy, using the Cucumber App, groups of detectors, switch interface units, and output devices can be linked to provide cost-effective, efficient, tailor-made solutions.
Key Features
30 metre range
Up to 30 m wireless network range between devices. Leveraging cutting-edge Bluetooth technology and robust software, it delivers reliable performance, extended range, and enhanced security.
2 amp relay
2 amps @ 230VAC capability suitable for switching non lighting loads.
Free to use app
It connects effortlessly to the Cucumber Network via the intuitive Cucumber App. Free to download and use, available for both Android and iOS.
Time saving
Saves on the wiring between devices, reducing installation time and associated costs.
Mounting bracket
Supplied with removable mounting bracket. Can be clipped on to 35 mm DIN rail.
Low profile design
Its low-profile design ensures easy installation within tight luminaire housings. Supplied with a removable mounting bracket.
Specifications and Dimensions
| Specifications | |
| Supply Voltage | 100VAC to 230VAC |
| Supply Frequency | 50/60Hz |
| Relay Max. Output Current | 2 Amps @ 230VAC |
| Parasitic Power Consumption | ?????? |
| Max Cabling Length | 50m |
| Circuit Protection | ≤10A MCB Type C |
| Terminal Capacity | 0.5mm² to 1.5mm² |
| Working Temperature | -10 to +35°C |
| Unit Weight | 0.03kg |
| Material (Casing) | ABS Dev962 UL 94 VO |
| Compliance | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/53/EU Radio Equipment Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive |
| BLE (Bluetooth) Transceiver | |
| Protocol | Bluetooth |
| Operation frequency | 2.4 GHz |
| Transmission Power | 10 dBm |
| Control Node to Sensor Range | 30m |
Part Codes
CN-SW-230V
Switching Control Node - Mains Powered
Downloads
Installation guides and datasheets for our Switching Control Node — Mains Powered.
Download Control Node CN-SW-230V Datasheet
737.847 KB
Download Quick Installation Guide CN-SW-230V
218.4 KB
Download Cucumber lighting controls brochure
1.659 MB
