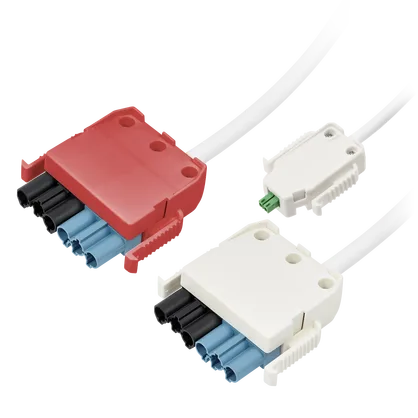

Luminaire and Sensor Leads

Luminaire and Sensor Leads

Designed in conjunction with the Cu-Connect Lighting Control Modules (LCM’s). Cca fire rated and Low Smoke Zero Halogen (LSZH) luminaire leads and sensor leads provide a positive, reliable, and safe dual latched connection. Luminaire and sensor leads are available in 3m, 5m & 8m lengths, or plugs can be purchased separately if you wish to supply your own cable

Made in britain Warranty landscape

Innovative connectivity

Our pre-wired luminaire and sensor leads provide a positive, reliable dual latched connection, providing a clear visual confirmation of proper engagement – reducing fault-finding time and decreasing arcing risk.

Innovative connectivity 2

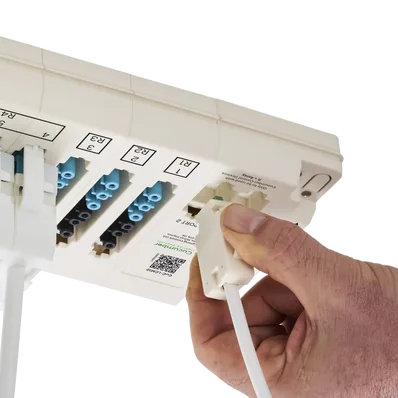

Pre-wired sensor leads

Pre-wired sensor leads utilise a simple 2‑core cable, reducing core counts and costs compared to traditional systems.

Pre wired sensor leads 2

Independently tested

All products are independently tested to relevant standards.

Testing

Plugs available separately

Plugs can be purchased separately if you prefer to supply your own cable.

Plug

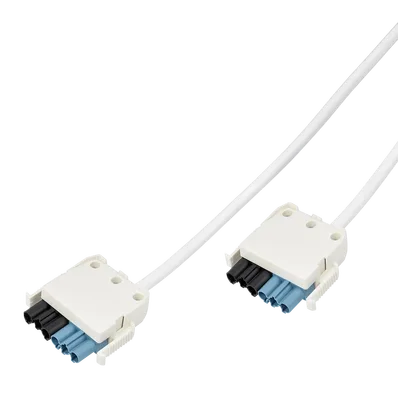

Multiple lead length options

Luminaire and sensor leads are available in 3m, 5m and 8m lengths to accommodate different installation requirements.

Leads

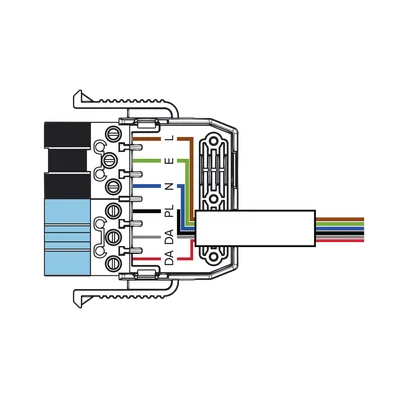

Flexible core configurations

Available in 3, 4, 5 and 6‑core configurations to suit a wide range of installations.

Core configurations

Part Codes

Luminaire white lead

LL3C3MWW

Luminaire lead 3-core 3m, white Cca LSZH 1mm² cable with white plug

Luminaire white lead

LL3C5MWW

Luminaire lead 3-core 5m, white Cca LSZH 1mm² cable with white plug

Luminaire white lead

LL3C8MWW

Luminaire lead 3-core 8m, white Cca LSZH 1mm² cable with white plug

Luminaire red lead

LL3C3MWR-PL

Luminaire lead 3-core 3m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL3C5MWR-PL

Luminaire lead 3-core 5m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL3C8MWR-PL

Luminaire lead 3-core 8m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL4C3MWR

Luminaire lead 4-core 3m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL4C5MWR

Luminaire lead 4-core 5m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL4C8MWR

Luminaire lead 4-core 8m, white Cca LSZH 1mm² cable with red plug

Luminaire white lead

LL5C3MWW

Luminaire lead 5-core 3m, white Cca LSZH 1mm² cable with white plug

Luminaire white lead

LL5C5MWW

Luminaire lead 5-core 5m, white Cca LSZH 1mm² cable with white plug

Luminaire white lead

LL5C8MWW

Luminaire lead 5-core 8m, white Cca LSZH 1mm² cable with white plug

Luminaire red lead

LL6C3MWR

Luminaire lead 6-core 3m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL6C5MWR

Luminaire lead 6-core 5m, white Cca LSZH 1mm² cable with red plug

Luminaire red lead

LL6C8MWR

Luminaire lead 6-core 8m, white Cca LSZH 1mm² cable with red plug

Sensor lead

SL2C3MWW

Sensor lead 2-core 3m, white Cca LSZH 0.75mm² cable with white plug

Sensor lead

SL2C5MWW

Sensor lead 2-core 5m, white Cca LSZH 0.75mm² cable with white plug

Sensor lead

SL2C8MWW

Sensor lead 2-core 8m, white Cca LSZH 0.75mm² cable with white plug

Luminaire white plug

KIT-LLPW

Luminaire lead plug - White

Luminaire red plug

KIT-LLPR

Luminaire lead plug – Red

Sensor plug

KIT-SLPW

Sensor lead plug – White

Downloads

Start your journey to smart illumination

Cucumber motion sensors and lighting controls are simple to setup using your smart device. Contact us to book a hands-on demo.
