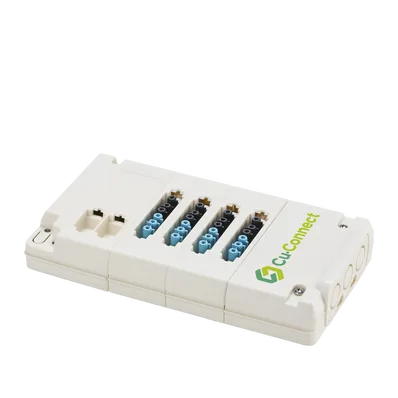

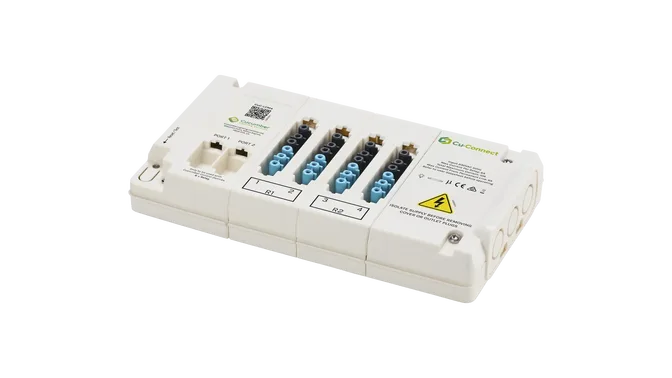

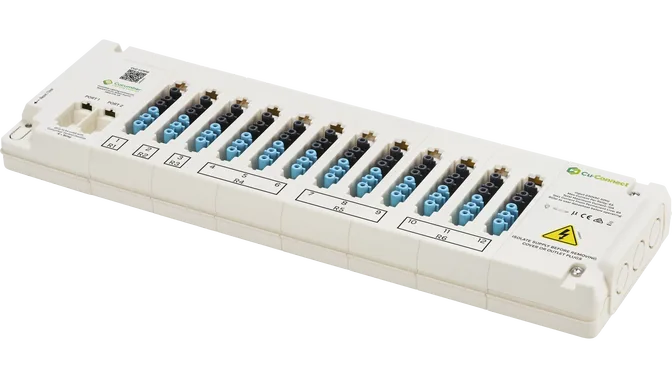

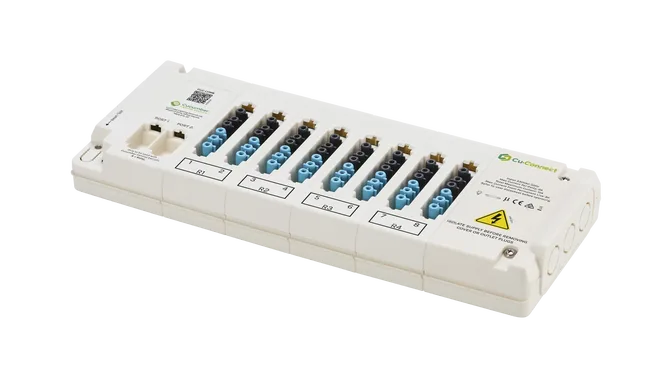

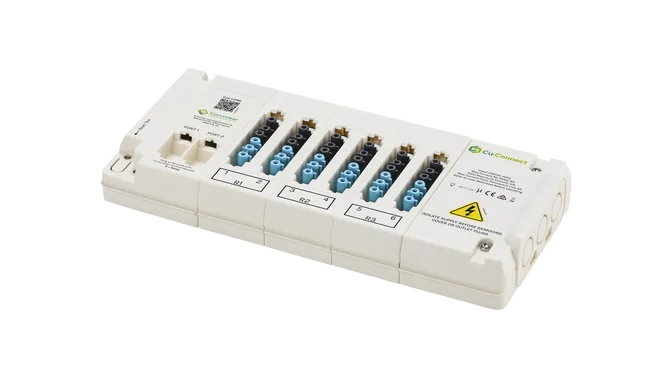

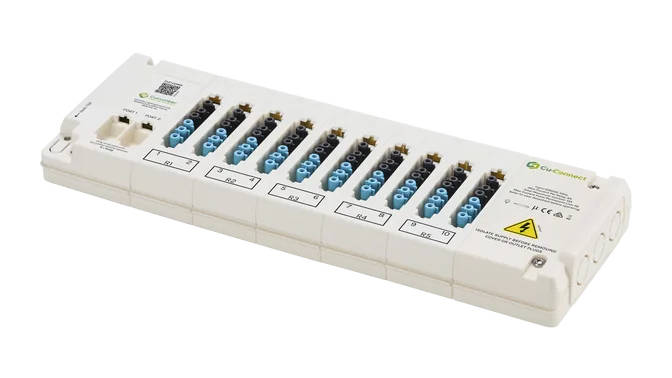

Cu-Connect Lighting Control Modules

Cu-Connect LCMs cover every lighting control application – from basic marshalling boxes to fully addressable, connected ecosystems. Simply choose the number of outputs required: 2, 4, 6, 8, 10, or 12. As with all Cucumber Lighting Controls products, installation is straightforward. Metal fixing brackets are mounted first, and the LCM securely clips into place. It’s suitable for drop rod, cable tray, slab, or BESA box installations.

Bluetooth® Backbone

Cu-Connect is built on the Bluetooth protocol, ensuring reliability, security, and easy system upgrades. This allows for new features to be added over time without major rewiring.

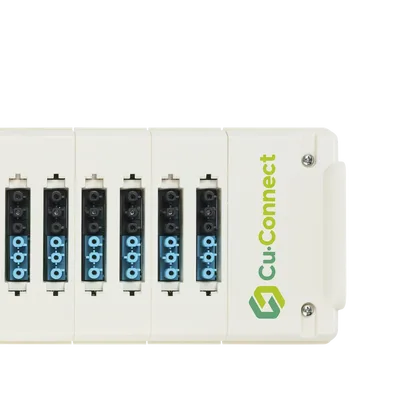

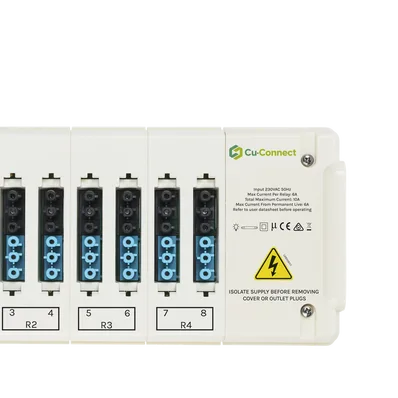

Effortless Wiring

Only live, neutral, and earth connections are required. The terminals support up to 4mm² cable with loop-in/loop-out capability, and a hinged wiring lid with captive screws speeds up work. No network cabling, permanent live feeds, or switch drops are necessary — reducing labour, material consumption, and complexity, while helping to eliminate wiring errors typical in more complicated systems.

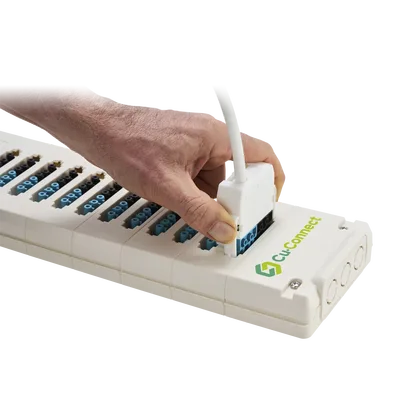

Innovative Connectivity

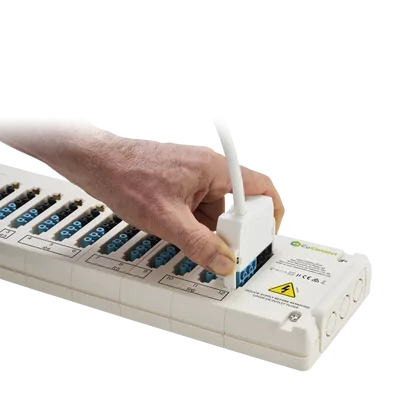

Luminaires connect through our patent-pending plug-and-socket system, providing a clear visual confirmation of proper engagement — reducing fault-finding time and decreasing arcing risk. Pre-wired plug-in detectors utilise a simple 2‑core cable, reducing core counts and costs compared to traditional systems. Additional sensors can also be integrated into the wider network without a direct physical connection to the LCM.

Flexible Switching

Switching is controlled through the Wireless Switch Interface Unit (mains or battery powered), offering full flexibility — from no switches at all to multiple switches installed wherever needed.

Simple Setup with the Cucumber App

The free Cucumber app makes commissioning fast and intuitive. Automatic DALI addressing eliminates the need for manual input, while flexible grouping accommodates all common configurations. Pre-configured settings can be uploaded for a smooth site rollout.

Maintenance Made Easy

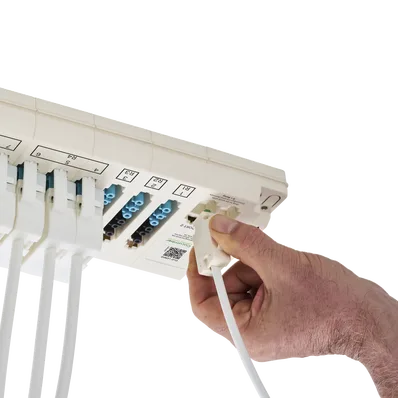

If an LCM needs replacement, simply unclip it from its bracket, unplug the connectors, and plug them into the new unit — no recommissioning required.

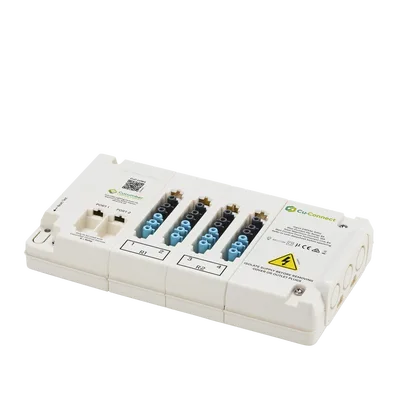

Sustainable by Design

Cu-Connect minimises material use with its cable-light design — no switch cables, no network cables, no permanent live feeds, and fewer cable cores and containment.

Built-In Emergency Testing

A standard built-in emergency test relay means no extra permanent live connection is needed. Emergency fittings can be tested without affecting other outputs, triggered via the app or a wireless switch.

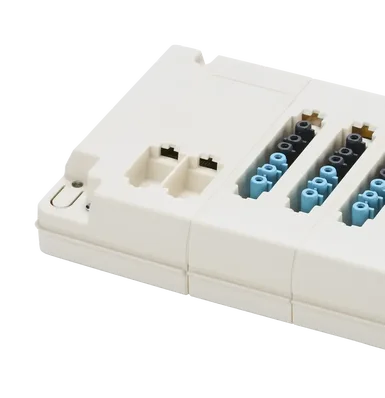

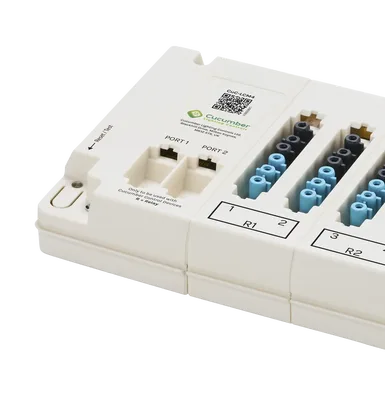

Smart Installation Features

A built-in smart button enables quick testing during installation and pre-commissioning, confirming luminaire connections and allowing for temporary lighting at a fixed dim level. An LED provides live status feedback at all times.

Specifications and Dimensions

Specifications
Supply Voltage	220VAC – 240VAC
Max Load (Total for LCM)	10 Amps @230VAC
Parasitic Power Consumption	2-Way: TBC 4-Way: 1416 mW Off; 2352 mW On 6-Way: TBC 8-Way: 1896 mW Off, 3888 mW On 10-Way: TBC 12-Way: 2328 mW Off, 5448 mW On
Max Load per Connector	6 Amps @230VAC
Max No of Sensors	6
Max DALI Supply	217 mA @ 13.8V
IP Rating	IP20
Working Temperature	-10 to +35 ºC
Humidity Range	5 to 95% non-condensing
Unit Weight	TBC
Material (Casing)	ABS Dev962 UL 94 VO
