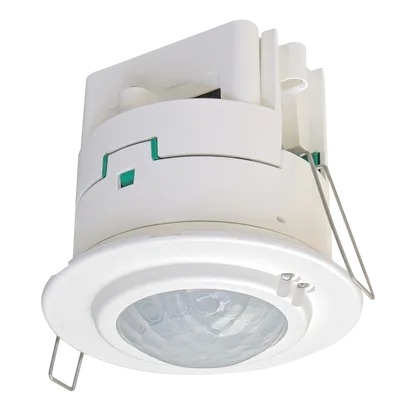

High Bay Dimming Lighting Control Sensor

with Bluetooth Wireless Network Connectivity, Mobile App setup, and a Seven Year Warranty — Made in Britain.

Sensor Features

Our unique product design and software mean our High Bay Dimming Lighting Control Sensor covers a wide range of applications and is easy to select and specify.

Wiring Compartment — Large wiring compartmentWith push-fit terminals for quick and easy installation.

Dimming Sensor Middle — Flexible mounting OptionsOne product design that is suitable for both surface or flush mounting offering flexibility during installation (UK patents granted. International patents applied for).

High Bay Head — 2-part modular constructionAllows for a first and second fix installation if required. Also enables customers to quickly interchange sensors heads if working environments change with limited disruption and waste.

Bluetooth® as standard

Sensors can be configured as standalone or they can be networked using mesh communication.

Bluetooth PIR Sensor - Cucumber lighting controls

DALI dimming functionality

Full DALI dimming capability includes maintained light levels, fade levels, and switch-on and switch-off light levels.

High Bay Dimming Lighting Control Sensor

Effortless programming

Use our free, user-friendly Cucumber Lighting Controls app for easy programming without specialist knowledge or equipment.

PIR sensor - bluetooth app - Cucumber lighting controls

Hassle-free wiring

Terminals for each cable eliminate the need for additional connectors, and dedicated earth terminals provide earth continuity to the luminaires.

PIR sensor - Large wiring compartment - Cucumber lighting controls

Optional shields

Our shield allows you to control specific areas of detection in high bay applications (UK patents granted. International patents applied for).

Market-leading warranty

UK manufacturing using premium components with high specifications allows us to offer a market-leading 7‑year warranty for added peace of mind.

PIR sensor - Warranty - Cucumber lighting controls

High quality power supply

Universal voltage 100 – 230VAC. High-efficiency power supply for low running costs.

Over the air APP updates

Over-the-air upgrades (OTA) to the latest software versions. Safe and secure European-based web server for cloud backup of user settings.

Black and IP65 versions

Black (RAL9005) and IP65 versions are also available.

Multi-pyro design

Our High Bay PIR sensors utilise a multi-pyro lens design for exceptional sensitivity and accuracy at various heights.

Remote light sensor

The light sensor is mounted away from the detector lens for improved measurement of ambient light levels.

Specifications and Detection Pattern

Specifications
Supply Voltage	100VAC to 230VAC
Supply Frequency	50/60Hz
Relay Max. Output Current	6 Amps @ 230VAC
Circuit Protection	≤10A MCB Type C
Parasitic Power Consumption	498mW
Terminal Capacity	0.5mm2 to 1.5mm2
Time Out Period	1 second to 240 minutes
Working Temperature	-10 to +35°C
Impact Resistance	IK04
IP Rating (flush mounted)	Standard versions: IP20 IP versions: IP65
Insulation Class	Class II
Unit Weight	0.156kg
Material (Casing)	ABS Dev962 UL 94 VO
Compliance	2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/53/EU Radio Equipment Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive
No of DALI Drivers	10 max. using sensor relay 20 max. not using sensor relay
