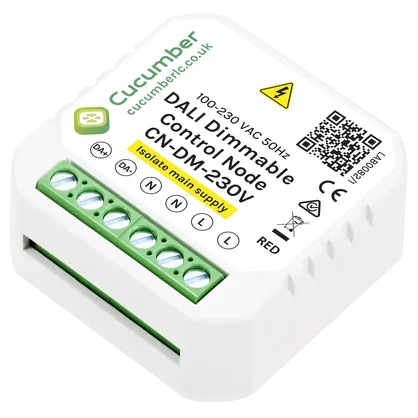

DALI Dimming Control Node - Mains Powered
The Cucumber Control Node seamlessly integrates into any luminaire. The luminaire can then wirelessly connect to other devices in the Cucumber Controls portfolio. Networking devices is quick and easy, using the Cucumber App, groups of detectors, switch interface units, and output devices can be linked to provide cost-effective, efficient, tailor-made solutions.
Key Features
30 metre range
Up to 30m wireless network range between devices. Leveraging cutting-edge Bluetooth technology and robust software, it delivers reliable performance, extended range, and enhanced security.
Mains powered DALI dimming
Five inputs for use with mains powered DALI dimming drivers. Click here to visit DALI Alliance for more information about the DALI standard.
Free to use app
It connects effortlessly to the Cucumber Network via the intuitive Cucumber App. Free to download and use, available for both Android and iOS.
Time saving
Saves on the wiring between devices, reducing installation time and associated costs.
Mounting bracket
Supplied with removable mounting bracket. Can be clipped on to 35 mm DIN rail.
Low profile design
Its low-profile design ensures easy installation within tight luminaire housings. Supplied with removable mounting bracket.
Specifications and Dimensions
| Specifications | |
| Supply Voltage | 100VAC to 230VAC |
| Supply Frequency | 50/60Hz |
| No of DALI Drivers | 20 max. (using DALI Broadcast only) |
| Parasitic Power | 110mW |
| Max Cabling Length | 50m |
| Circuit Protection | ≤10A MCB Type C |
| Terminal Capacity | 0.5mm² to 1.5mm² |
| Working Temperature | -10 to +35°C |
| Unit Weight | 0.03kg |
| Material (Casing) | ABS Dev962 UL 94 VO |
| Compliance | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/53/EU Radio Equipment Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive |
| BLE (Bluetooth) Transceiver | |
| Protocol | Bluetooth |
| Operation frequency | 2.4 GHz |
| Transmission Power | 10 dBm |
| Control Node to Sensor Range | 30m |
Part Codes
CN-DM-230V
DALI Dimming Control Node - Mains Powered
Downloads
Installation guides and datasheets for our DALI Dimming Control Node — Mains Powered.
Download Control Node CN-DM-230V Datasheet
717.814 KB
Download Quick Installation Guide CN-DM-230V
204.057 KB
Download Cucumber lighting controls brochure
1.659 MB
Cucumber Controls App
Simple setup of motion sensors using your smart device.
