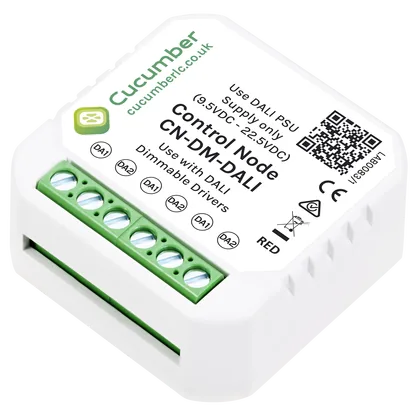

DALI Dimming Control Node - DALI Powered

DALI Dimming Control Node - DALI Powered

The Cucumber Control Node seamlessly integrates into any luminaire. The luminaire can then wirelessly connect to other devices in the Cucumber portfolio. Networking devices is quick and easy, using the Cucumber App, groups of detectors, switch interface units, and output devices can be linked to provide cost-effective, efficient, tailor-made solutions.

Made in britain Warranty landscape

Key Features

30 metre range

Up to 30m wireless network range between devices. Leveraging cutting-edge Bluetooth technology and robust software, it delivers reliable performance, extended range, and enhanced security.

30metre range bluetooth

DALI powered drivers

Nodes are individually configurable, supporting switching, dimming and scene recall functions. Click here to visit DALI Alliance for more information about the DALI standard.

Dali
Click here to visit DALI Alliance for more information about the DALI standard.

Free to use app

It connects effortlessly to the Cucumber Network via the intuitive Cucumber App. Free to download and use, available for both Android and iOS.

Siu phone

Time saving

Saves on the wiring between devices, reducing installation time and associated costs.

Speed 1

Mounting bracket

Supplied with removable mounting bracket. Can be clipped on to 35 mm DIN rail.

Control Node CN DM DALI 1610241254

Low profile design

Its low-profile design ensures easy installation within tight luminaire housings. Supplied with removable mounting bracket.

Cucumber Switch Interface Unit size

Specifications and Dimensions

Sw iu
Sw iu bracket
Specifications
Supply Voltage Via DALI PSU (9.5VDC to 22.5VDC)
Parasitic Power 150mW
Max Cabling Length 50m
Circuit Protection ≤10A MCB Type C
Terminal Capacity 0.5mm² to 1.5mm²
Working Temperature -10 to +35°C
Unit Weight 0.02kg
Material (Casing) ABS Dev962 UL 94 VO
Compliance 2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2014/53/EU Radio Equipment Directive
2011/65/EU Restriction of Hazardous Substances (RoHS) Directive
BLE (Bluetooth) Transceiver
Protocol Bluetooth
Operation frequency 2.4 GHz
Transmission Power 10 dBm
Control Node to Sensor Range 30m

Part Codes

Control Node CN DM DALI 1610241254

CN-DM-DALI

DALI Dimming Control Node - DALI Powered

Downloads

Installation guides and datasheets for our DALI Dimming Control Node — DALI Powered .
