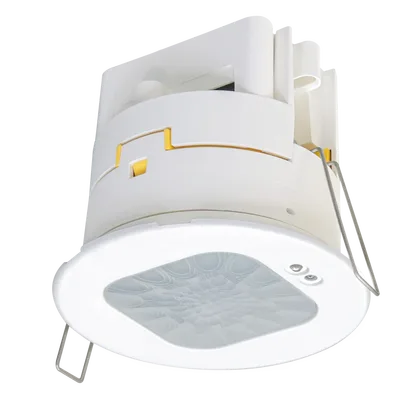

Ceiling Switching Lighting Control Sensor
with Bluetooth Wireless Network Connectivity, Mobile App setup, and a Seven Year Warranty — Made in Britain.
Sensor Features
Our unique product design and software mean our Ceiling Switching Lighting Control Sensor covers a wide range of applications and is easy to select and specify.
Bluetooth® as standard
Sensors can be configured as standalone or they can be networked using mesh communication.
Innovative flat square lens
The square lens provides an optimum room-shaped detection pattern with fewer dead spots. The light sensor is mounted away from the detector lens for improved measurement of ambient light levels.
Effortless programming
Use our free, user-friendly Cucumber Lighting Controls app for easy programming without specialist knowledge or equipment.
Colour coded
Easy identification of switching (yellow) and dimming (green) sensors.
Quick and easy installation
A large wiring compartment with push-fit terminals facilitates quick and easy installation. Terminals for each cable eliminate the need for additional connectors, and dedicated earth terminals provide earth continuity to the luminaires.
Market-leading warranty
UK manufacturing using premium components with high specifications allows us to offer a market-leading 7‑year warranty for added peace of mind.
High quality power supply
Universal voltage 100 – 230VAC. High-efficiency power supply for low running costs.
Over the air APP updates
Over-the-air upgrades (OTA) to the latest software versions. Safe and secure European-based web server for cloud backup of user settings.
Black and IP65 versions
Black (RAL9005) and IP65 versions are also available.
Innovative flat square lens
The square lens provides an optimum room-shaped detection pattern with fewer dead spots.
Remote light sensor
The light sensor is mounted away from the detector lens for improved measurement of ambient light levels.
Specifications and Detection Pattern
| Specifications | |
| Supply Voltage | 100VAC to 230VAC |
| Supply Frequency | 50/60Hz |
| Relay Max. Output Current | 6 Amps @ 230VAC |
| Circuit Protection | ≤10A MCB Type C |
| Parasitic Power Consumption | 260mW |
| Terminal Capacity | 0.5mm2 to 1.5mm2 |
| Time Out Period | 1 second to 240 minutes |
| Working Temperature | -10 to +35°C |
| Impact Resistance | IK04 |
| IP Rating (flush mounted) | Standard versions: IP20 IP versions: IP65 |
| Insulation Class | Class II |
| Unit Weight | 0.138kg |
| Material (Casing) | ABS Dev962 UL 94 VO |
| Compliance | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/53/EU Radio Equipment Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive |
Part Codes
Find the right part number for our Ceiling Switching Lighting Control Sensor and accessories.
PIRSCRW
PIR Switching Ceiling Sensor Recessed White RAL9010
PIRSCRB
PIR Switching Ceiling Sensor Recessed Black RAL9005
SMSLW
Surface Mount Sleeves - White
SMSLB
Surface Mount Sleeves - Black
PIRSCRWIP
PIR Switching Ceiling Sensor Recessed White RAL9010 IP65
PIRSCRBIP
PIR Switching Ceiling Sensor Recessed Black RAL9005 IP65
Downloads
Installation guides and datasheets for our Ceiling Switching Lighting Control Sensor.

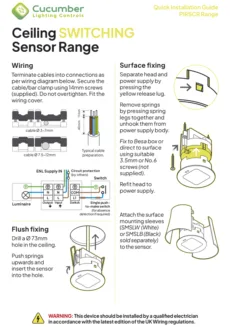

Download Ceiling Switching Sensor Range Quick Installation Guide
690.482 KB
Download Ceiling Switching Sensor Range Datasheet
1.062 MB
Download Cucumber lighting controls brochure
2.259 MB
Cucumber Controls App
Simple setup of motion sensors using your smart device.
