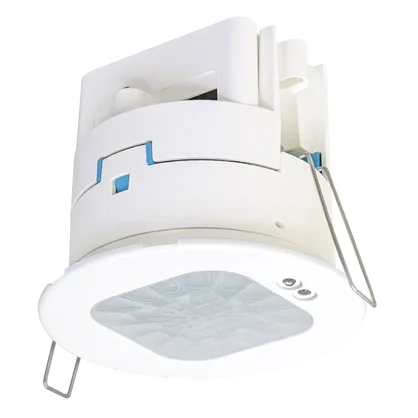

Ceiling Dimming Lighting Control Sensor - DALI Powered

Our DALI-powered Ceiling sensors are designed for use with our lighting control modules and DALI-powered networks. DALI-power offers simplified installation and wiring. They require no additional power wiring; a two-wire control bus allows flexible, non-polarised, easy-to-install wiring, and the low-voltage topology requires less cabling reducing installation management and associated costs.

Sensor Features

Our unique product design and software mean our Ceiling Dimming Lighting Control Sensor covers a wide range of applications and is easy to select and specify.

Wiring Compartment — Large wiring compartmentWith push-fit terminals for quick and easy installation.

Dali dimming middle — Flexible mounting OptionsOne product design that is suitable for both surface or flush mounting offering flexibility during installation (UK patents granted. International patents applied for).

Ceiling Sensor Head — 2-part modular constructionAllows for a first and second fix installation if required. Also enables customers to quickly interchange sensors heads if working environments change with limited disruption and waste.

Bluetooth® as standard

Sensors can be configured as standalone or they can be networked using mesh communication. Click here to visit the Bluetooth website for more information.

Innovative flat square lens

The square lens provides an optimum room-shaped detection pattern with fewer dead spots.

DALI programming

Our free, user-friendly app allows programming without specialist equipment. Full DALI dimming capability includes maintained light levels, fade levels, and switch-on and switch-off light levels. Click here to visit DALI Alliance for more information about the DALI standard.

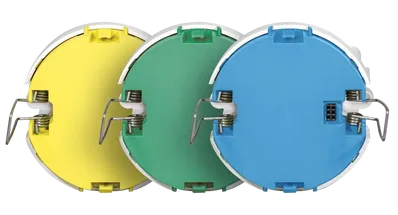

Colour coded

Colour coded housings for easy identification = yellow for switching; green for dimming; blue for DALI powered

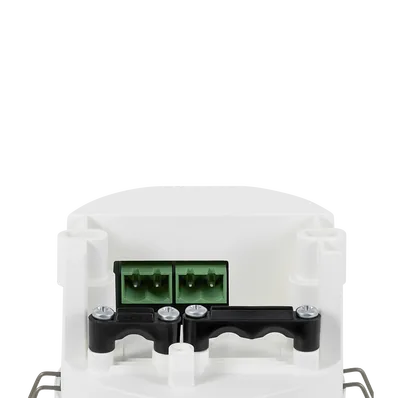

Hassle-free wiring

A large wiring compartment with pluggable connectors facilitates quick and easy installation.

Market-leading warranty

UK manufacturing using premium components with high specifications allows us to offer a market-leading 7‑year warranty for added peace of mind.

High quality power supply

High-efficiency DALI (9.5VDC to 22VDC) power supply for low running costs.

Over the air APP updates

Over-the-air upgrades (OTA) to the latest software versions. Safe and secure European-based web server for cloud backup of user settings.

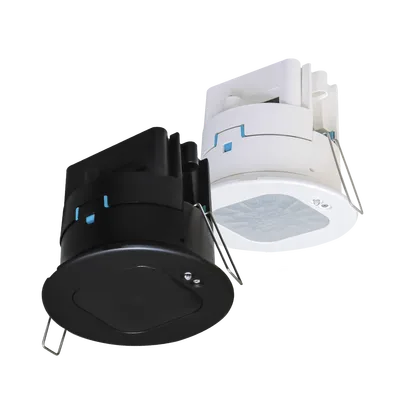

Black and IP65 versions

Black (RAL9005) and IP65 versions are also available.

Innovative flat square lens

The square lens provides an optimum room-shaped detection pattern with fewer dead spots.

Remote light sensor

The light sensor is mounted away from the detector lens for improved measurement of ambient light levels.

Specifications and Detection Pattern

Specifications
Supply Voltage	Via DALI PSU (9.5VDC to 22VDC)
Parasitic Power Consumption	200mW
Terminal Capacity	0.5mm2 to 1.5mm2
Time Out Period	1 second to 240 minutes
Working Temperature	-10 to +35°C
Impact Resistance	IK04
IP Rating (flush mounted)	Standard versions: IP20 IP versions: IP65
Unit Weight	0.098kg
Material (Casing)	ABS Dev962 UL 94 VO
Compliance	2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2014/53/EU Radio Equipment Directive 2011/65/EU Restriction of Hazardous Substances (RoHS) Directive
No of DALI Drivers	64 max.
